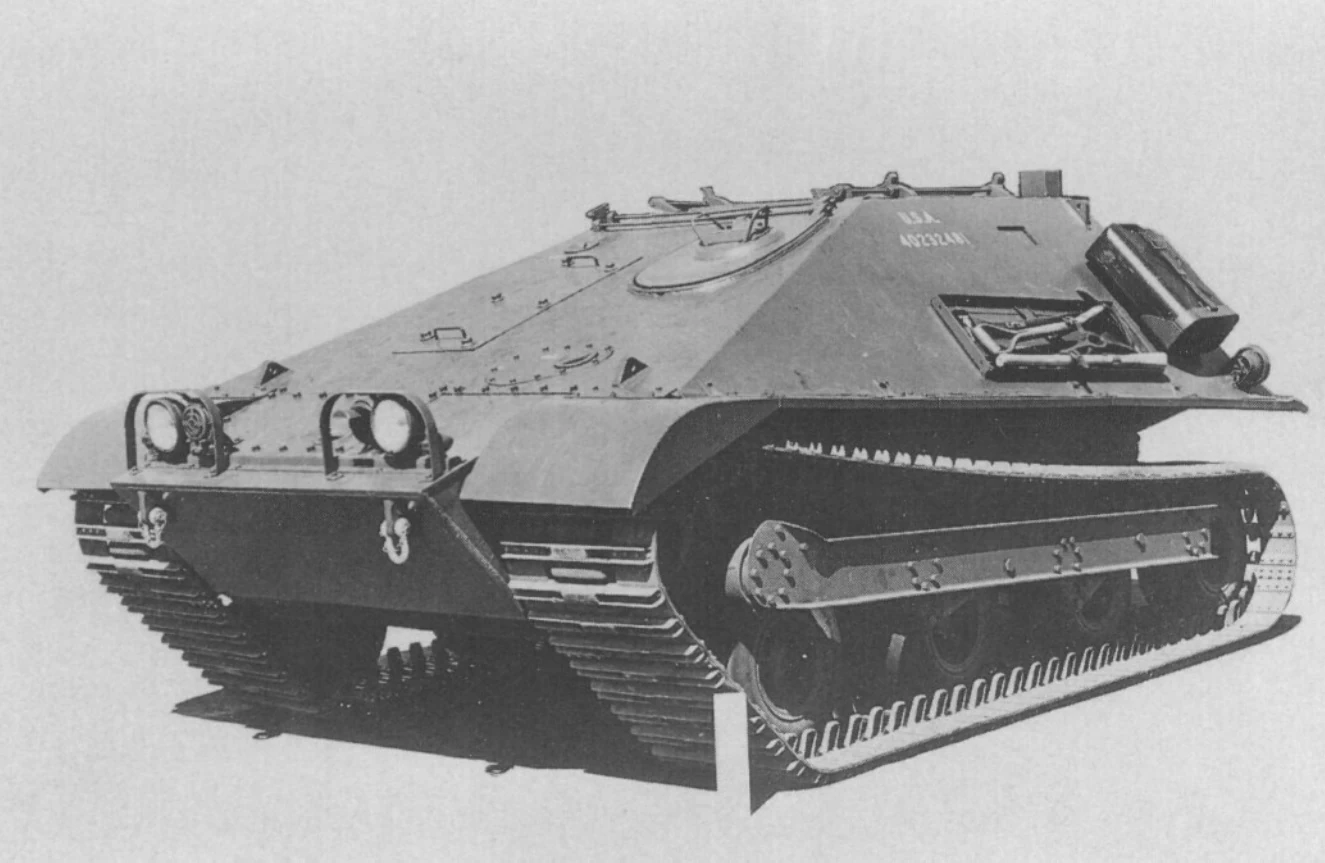

T55 Utility Vehicle

For other items known as T55, see: T55 Disambiguation

Overview[]

Utility Vehicle, Tracked, T55

General Data

Type

Armoured Personnel Carrier

Place of Origin

United States of America

Designed

September 1951 - May 1952

Manufacturer

• Allis-Chalmers
• Detroit Tank Arsenal

Produced

Early 1952

Number Built

2 prototypes

Serial Numbers

Number 1, Number 2

Development

Developed Into

• T56
• T166

Misc Specs

Crew

1 + 6 (Driver, troops)

Internal Communication

None

External Communication

AN/PRC-10

Automotive

Engine

General Motors Model 302

Engine Characteristics

6-cylinder, 4-cycle, in-line
147hp @ 3400rpm

Auxiliary Power

None

Transmission/Gearbox

Allison X-drive XT-90-2

Gears

4; 3 forward, 1 rear

Brakes

Multiple disc

Suspension

Torsilastic

Roadwheels

4 individual per side (8)

Drive Sprocket

Front, 15-tooth

Idler Sprocket

Rear

Track Type

T123: Central and outside guide

Steering System

Steering Controls: Mechanical, steering levers
Steering System: Clutch-brake

The T55 Utility Vehicle is an American utility vehicle developed for transporting infantry and light equipment across the battlefield. The T56 was a further development of this vehicle, with a lengthened chassis.
