Springfield Model 1863

Overview

This infobox has been replaced, use Guninfobox2 instead.

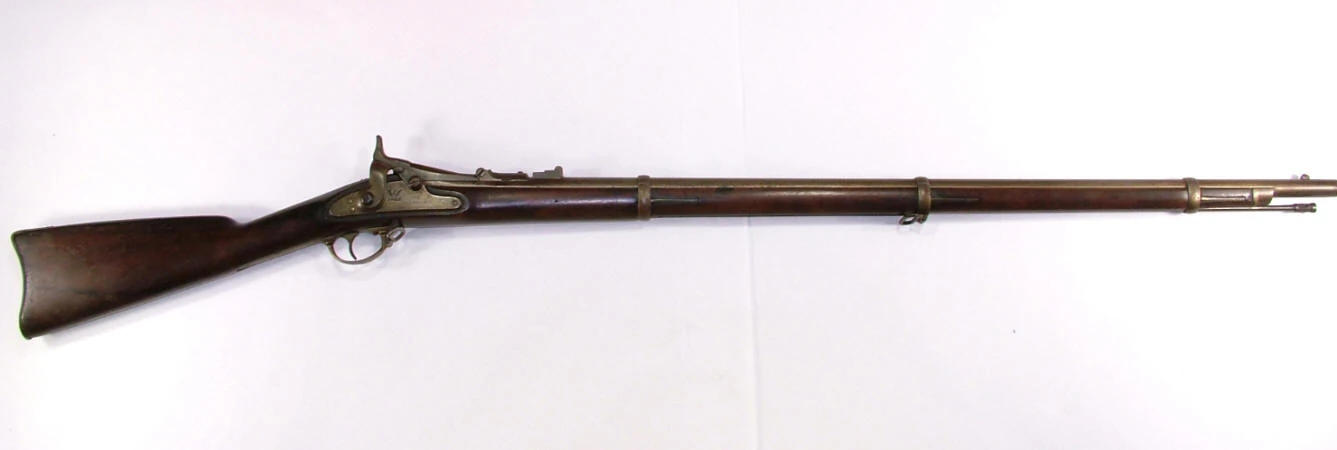

Springfield Model 1863
General Information
Type	Rifle Musket
Place of Origin	United States of America
Manufacturer(s)	Springfield Armory
Designed by	Springfield Armory
Designed	1836
Number Built	~700,000
Produced	1963 - 1865
Developed From	Springfield Model 1861
In Service	1863 - 1865
Used by	United States of America
Wars	American Civil War
Specifications
Cartridge(s)	.58 Minié ball
Action	Percussion Lock
Fire-Modes	Single Shot
Feed System	Muzzle Loaded
Effective Range	182 - 274m
Maximum Range	731 - 914m
Dimensions
Length	1422mm
Other
Default Sights	Iron Sights
Buttstock Type	Full Stock
Rifling	Yes

The Springfield Model 1863 is a .58 caliber rifle musket, which is a minor improvement of the Springfield Model 1861 and is commonly classified as a variant of the model 1861.

The Model 1863 was produced in two variants. The Type I eliminated the band springs and replaced the flat barrel bands with oval clamping bands. It also featured a new ramrod, a case-hardened lock, a new hammer, and a redesigned bolster (percussion chamber).

The Type II is sometimes referred to as the Model 1864, but is more commonly referred to as just a variant of the Model 1863. This version re-introduced band springs, replaced the clamping bands with solid oval bands, and replaced the three leaf rear sight with single leaf sight.
