Overview[]

The Jagdpanzer 38 (abbreviated as J.Pz. 38), was a tank destroyer developed from the Panzerkampfwagen 38(t).

The J.Pz. 38 formed the basis of a new generation of vehicles originally based on the Pz.Kpfw. 38(t), with many new vehicles using the newly modified J.Pz. 38 for their own uses. The J.Pz. 38 D followed the J.Pz. 38, forming a third generation of variants albeit mostly too late in the war to contribute to the war effort.

Names[]

The Jagdpanzer 38 has been known to go by the following names:

leichter Panzerjäger auf 38(t)
Wa Prüf 6. (7 January 1944)
Pz.Jäger 38(t)
KTB, GenStdH/Gen.d.Art. (18 January 1944)
Sturmgeschütz neuer Art
Gen Insp.d.Pz.Tr. an OKH/Wa Prüf. (28 January 1944)
Le. Pz.Jäger (38t)
Gen Insp.d.Pz.Tr. an OKH/Wa Prüf. (28 January 1944)
leichtes Sturmgeschütz auf 38(t)
Führer Konferenz (28 January 1944)
Panzerjäger 38 für 7,5cm Pak 39 (L-/48) (Sd Kfz 138/2)
K.St.N. 1149. (1 January 1944)
leichter Panzerjäger auf 38(t)
Wa Prüf 6. (28 February 1944)
Stu.Gesch.n.A mit 7.5cm Pak 39 L/48 auf Fgst.Pz.Kpf.Wg.38(t)
Waffen bzw.Geräte. (March 1944)
le.Pz.Jg.38t
Gen.lnsp.d.Pz.Tr.Akten. (4 March to October 1944)
Pz.Jäger 38(t)
KTB, GenStdH/Gen.d.Art. (16 April 1944)
7,5 cm Panzerjäger 38(t)
Chef.H.Rüst.u.BdE, Wa.Abn. (6 April to 31 July 1944)
Stu.Gesch.38(t)
Chef.H.Rüst.u.BdE, Wa.Abn. (6 April to 6 June 1944)
Stu.Gesch.n.Aa mit 7.5cm Pak 39 L/48 auf Fgst.Pz.Kpf.Wg.38(t)
Überblick über den Rüstungsstand des Heeres Chef.H.Rüst.u. BdE/Stab Rüst lil. (15 May to 15 October 1944)
le.Pz.Jäg.38(t)
GenSTdH/General der Artillerie Kriegstagebuch. (7 June to 30 July 1944)
Stu.Gesch.38(t)
GenSTdH/Org.Abt. Bericht. (12 June and 28 June 1944)
I.Pz.Jg.38(t)
Wa Prüf 6. (23 June 1944)
G13
Internal manufacturer code at Škoda. (~July 1944)
le.Pz.Jg.38t
Battalion flag for an Artillerie Bataillon. Also used for Sturmgeschütz, Fla.K., and other SPGs. Panzerjäger-Abteilung 743. (3 August 1944)
Sturmgeschütz 38(t)
Wa Prüf 4, when referencing the vehicle in relation to the starr models. 11 August 1944.
Ie.Pz.Jg.38(t) mit 7,5cm Pak L/48 auf Fgst Pz 38t
GenSTdH/Org.Abt./Gen.lnsp.d.Pz.Tr. (8 September 1944)
le. Panzerjäger 38t
GenSTdH/Org.Abt./Gen.lnsp.d.Pz.Tr. (8 September 1944)
Jagdpanzer 38
GenSTdH/Org.Abt./Gen.lnsp.d.Pz.Tr. (11 September 1944)
Pz.-Jäger 38(t)
GenSTdH/General der Artillerie Kriegstagebuch. (12 September 1944)
Jagdpanzer 38
Gen.lnsp.d.Pz.Tr.Akten. (19 October 1944 to 6 April 1945)
Jagdpanzer 38
D 652/63. (1 November 1944)
Jagdpanzer 38 und Panzerjäger 38 (7,5cm Pak 39 (L/48) (Sd.Kfz 138/2)
K.St.N. 1149. (1 November 1944)
Jagdpz. 38
Combat readiness report by Panzergrenadier Division “Feldherrnhalle”. None were shown on strength. (3 November 1944)
Jagdpanzer 38, Panzerjäger 38 (m 7,5cm Pak 39 (L/48) (Sd.Kfz 138/2)
Überblick über den Rüstungsstand des Heeres, Chef H.Rüst u. BdE/Stab Rüst III. (15 November 1944 to 15 March 1945)
Jagdpanzer 38
WaA/Wa Prüf 6. (17 November and 19 December 1944)
Hetzer
The origin of this name was explained in this document as coming from the troops to denote the Jagdpanzer 38. Gen. Insp.d.Pz.Tr. Guderian. (4 December 1944)
Hetzer / Pz.Jg.38(T)
Icon used to portray an Armee-Korps within the Waffen-SS. IX. Waffen Gebirgs-Armeekorps der SS. (19 December 1944)
Jagdpanzer 38 T (Hetzer)
Chief General Quartermaster I.A.Gschwender, Luftwaffe High Command telex. (16 February 1945)
Jg.Pz.38 t
SS-Sturmbannführer combat readiness report. (March 1945)
Jg.Pz.38 t Hetzer
SS-Sturmbannfüher combat readiness report. (March 1945)
Panzerjägerwagen 638/10
..?

The name 'Hetzer' is not an official nickname, used only by select units in the field. The only vehicle to receive the name 'Hetzer' officially, is the E 10.

Development[]

Following a bombing raid on the Alkett plant, BMM was pushed to manufacture tank destroyers whilst Alkett was out of action. BMM however did not have the capacity to manufacture the 24-ton Sturmgeschütz III due to the lack of equipment capable of lifting a vehicle of that weight.

In early December 1943 the design for a leichten Sturmgeshütz auf 38(t) was started. The following characteristics were to be included;

  • Automotive components from the standard 38(t) and from the 38(t) n.A..
  • A weight of 13,000kg.
  • Primary armament consisting of a 7,5cm L/48 cannon.
  • Maximum speed of up to 60km/h.
  • Frontal armour sufficient against anti-tank guns.

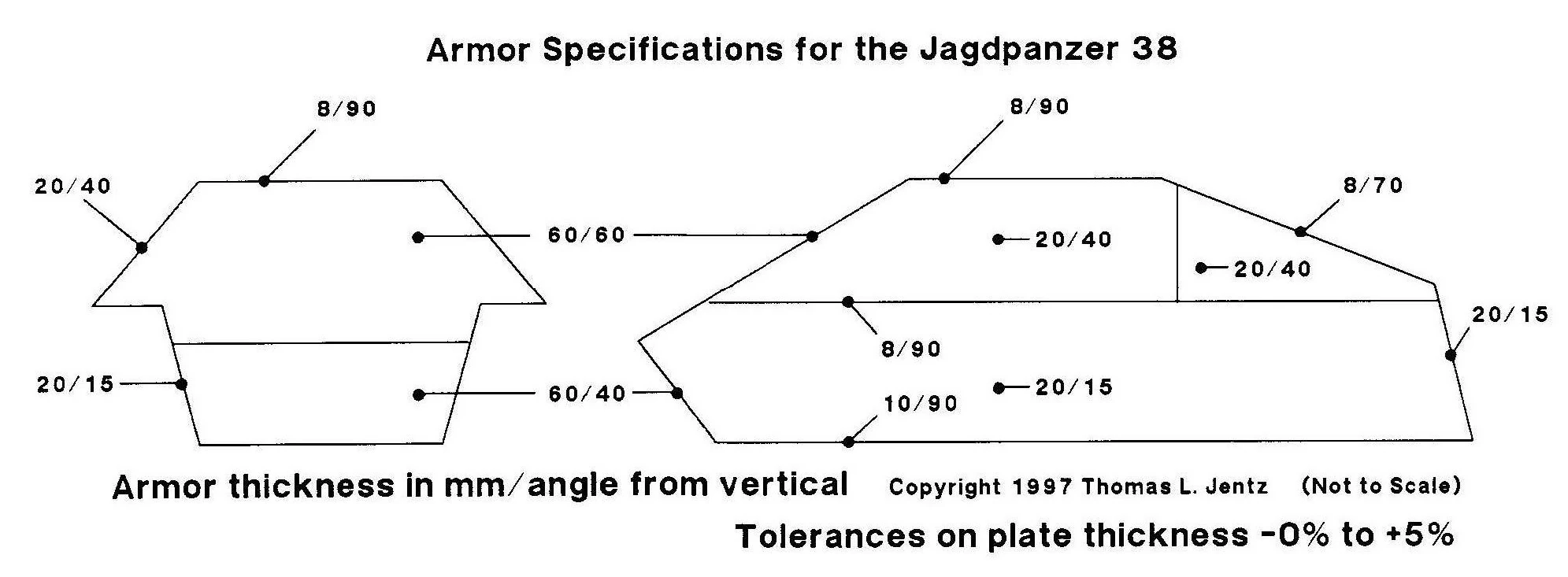

  • Side and rear armour consisting of 20mm low alloy SM steel (equivalent to 14.5mm of armour steel, providing protection against armour-piercing 7.92mm ammunition and artillery fragments).

On 24 January 1944 a wooden mockup was completed, and was inspected on the 26th. Production began in the following months with the first three vehicles being completed in March 1944. The vehicle was known internally as G13 by the BMM plant, with earlier tank destroyers being designated G12 and G11.

The production vehicle ended up exceeding the 13-ton weight limit, reaching 16-tons. As a result, automotive components were overtaxed and the top speed was only 40km/h instead of the required 60km/h.

In July 1944 Škoda joined BMM in production of the Jagdpanzer 38, producing 780 through April 1945.

Throughout production multiple changes were made to the vehicle, including;

  • Replaced tow hooks with drilled hull extensions. (April 1944)
  • Addition of a commander's hatch with two access hatches to the rear deck.
  • Removal of the early heat resistant muffler.
  • Addition of three welded Pilze to the roof. (June 1944)
  • Replaced gun mantlet with a lighter version.
  • New roadwheels with larger diameter discs.
  • New idler, six different types during production. (August 1944)
  • Bends in Schürzen added.
  • Strengthened leaf springs (up to 9mm thick). (September 1944)
  • Removal of the driver's periscopes armour guard.
  • Replaced roadwheel bolted construction with riveted construction.
  • Addition of the Flammvernichter muffler. (October 1944)
  • Increased ammunition stowage for the main gun by five rounds. (November 1944)
  • Increased final drive gear ratio from 7.33 to 8.00. (January 1945)
  • Reinforced hull side extension towing eyes, or replaced with U-hooks. (March 1945)
  • Welding on rings to attach camouflage netting. (March 1945)

Some examples had a muzzle brake for the 7,5cm Pa.K. 39. The muzzle brake was phased out as it proved to not be as beneficial as first thought, not helping with recoil and only reducing heat.

Variants[]

Jagdpanzer 38
Base model tank destroyer.
Jagdpanzer 38 als Befehlswagen
Tank destroyer with command equipment (Fu.G. 8).
Jagdpanzer 38 starr
Model with rigid gun mount, fitting a rücklauflose Kanone. A 0-serie of 10 was made in Dec 1944 / Jan 1945 by BMM.
Jagdpanzer 38 starr mit 7,5cm Pa.K. 39
Model with rigid gun mount, fitting the same 7,5cm Pa.K. 39 cannon. A single example was ordered in Mar 1945 to be presented in mid Apr 1945.
Jagdpanzer 38 mit 7,5cm Pa.K. 42
Proposed model to replace the Panzer IV/70(V) in service. Armed with a 7,5cm Pa.K. 42. Designed Nov 1944, has a rear mounted gun compartment with more armour than the traditional J.Pz. 38.

Derivatives

3cm Fla.K. 103/38 auf Bergepanzer 38
Converted Bergepanzer 38 fitting a single 3cm Fla.K. 103/38 in a cut out roof section of the superstructure.
3cm Zwilling-Flak auf Panzerkampfwagen 38
Self-propelled anti-aircraft design fitting twin 3cm Fla.K. 103/38 derived from 3cm M.K. 103.
Bergepanzer 38
Armoured recovery vehicle.
Fahrschulepanzer 38
Driver training model.
Jagdpanzer 38 (Flamm)
Model with the main gun replaced with a 1,4cm Flammenwerfer concealed by a barrel shroud.
Jagdpanzer 38 D
Modernized model with many changes.
Kätzchen K1
Armoured personnel carrier by Auto Union.
Kätzchen K2
Armoured personnel carrier by Auto Union with suspension from BMM.
Kätzchen 38
Armoured personnel carrier by BMM.
Panzer-Aufklärer auf 38(t)
Proposed reconnaissance model with the 2cm Hängelafette 38 turret.
Panzerkampfwagen 38 mit 7,5cm Kw.K. 40
Proposed medium tank fitting a Pz.Kpfw. IV turret with the 7,5cm Kw.K. 40 L/48 main gun.
Panzerkampfwagen 38 mit 8cm P.A.W. 600
Proposed medium tank fitting a Pz.Kpfw. IV turret with the 8cm P.A.W. 600 main gun.
Vollkettenaufklärer 38
Reconnaissance model with a 7,5cm K. 51 L/24 in a superstructure.

Foreign

Panzerjäger G13
Swiss model manufactured post-war. Utilizes the 7,5cm Pa.K. 40 instead of the 7,5cm Pa.K. 39.
PM-1
Czech post-war flamethrower tank.
ST-I
Czech post-war model. Many were captured from the Germans prior to the end of the war. 249 entered service.
ST-III/CVP
Czech post-war driver training model.


Service History[]

Unit Amount Date Chassis No. Notes
Battalion flag for an Artillerie Bataillon. Also used for Sturmgeschütz, Fla.K., and other SPGs. Panzerjäger-Abteilung 561 45 Feb 1945
Battalion flag for an Artillerie Bataillon. Also used for Sturmgeschütz, Fla.K., and other SPGs. Panzerjäger-Abteilung 731 45 4 - 13 Jul 1944
Battalion flag for an Artillerie Bataillon. Also used for Sturmgeschütz, Fla.K., and other SPGs. Panzerjäger-Abteilung 741 45 Sep 1944
Battalion flag for an Artillerie Bataillon. Also used for Sturmgeschütz, Fla.K., and other SPGs. Panzerjäger-Abteilung 743 45 19 - 28 Jul 1944
Battalion flag for an Artillerie Bataillon. Also used for Sturmgeschütz, Fla.K., and other SPGs. Panzerjäger-Abteilung 744 45 Mar 1945
