Carrier, Personnel, Half-Track, M5

For other items known as M5, see: M5 Disambiguation

⚠ This article requires an update to fit site standards. ⚠

Reason:
General update or none specified

Overview[]

Carrier, Personnel, Half-Track, M5

Front

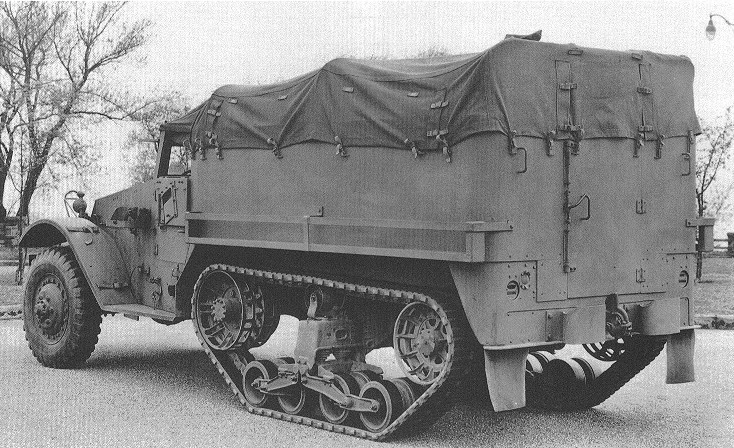

Rear

General Data

Type

APC
Prime Mover

Place of Origin

United States of America

Designed by

US Army Ordnance Corps

Designed

1942

Manufacturer

International Harvester

Produced

1942 - 1943

Number Built

7,484

In Service

1943 - 1990s

Development

Developed From

M3E2 Half-Track

Developed Into

M5A1 Half-Track

Armament

Main Gun

.30-06 Springfield M1919A4 (4000 rounds)

Crew Weaponry

Provision for;
• 1 x .45 ACP M3 SMG or M1928A1 (540 rounds)
• 12 x .30-06 M1 Garand or .30 Carbine M1 Carbine (4000 rounds)
• 1 x M1A1 Rocket Launcher (6 rockets)
• 22 x Hand Grenades
• 24 x M1A1 Mine
When required, 6000 additional rounds of .30 caliber ammunition could be carried with the personnel capacity reduced by two men

Defence

Armour Type

Rolled homogeneous steel, welded assembly

Armour Layout

7.9 - 15.9mm

Misc Specs

Crew

15

Fire Protection

1 x 2lb carbon dioxide, portable
2 x 1½qt decontaminating apparatus, M2

External Communication

• SCR 193 or SCR 506
• SCR 508
• SCR 593

Dimensions

Weight

9,299kg

Length

w/roller: 6.152m
w/winch: 6.327m

Width

2.207m

Height

2.744m

Tread

Front: 1.690m
Rear: 1.621m

Wheelbase

3.442m

Automotive

Engine

International Harvester RED-450-B

Power/Weight

4.68hp/t

Engine Characteristics

Displacement:11,456mm
Compression Ratio: 6.35:1
Weight:567kg
Engine Oil: 9.93L
Ignition: Battery
Cooling System: Liquid
HP: 43.6hp @ 2700rpm
Torque: 471.9J @ 800rpm

Auxiliary Power

Nominal voltage: 12 volts DC
Main generator: 12V, 55amp, driven by main engine
Auxiliary Generator: None
Battery: 12 volts

Transmission/Gearbox

Master clutch: dry, single disc
Transmission: constant mesh
Transfer case: constant mesh, direct and underdrive;
Gear ratios: High: 1.00:1 • Low: 2.48:1
Gear ratio front axle: 7.16:1
Gear ratio track drive: 4.22:1

Gears

4 forward, 1 reverse;
Gear ratios;
• 1st: 4.92:1
• 2nd: 2.60:1
• 3rd: 1.74:1
• 4th: 1.00:1
• Reverse: 4.37:1

Fuel Capacity

227.125L of 72 octane gasoline

Operational Range

Approx. 320km

Speed

Onroad: 62km/h

Maximum Fording Depth

0.81m

Minimum Turning Diameter

18.0m

Suspension

Front: semi-elliptic longitudinal leaf spring
• 2 ventiladed disc steel wheels (1 per side)
• Combat tires 12ply
•
Rear: vertical volute spring suspension (VVSS)

Maximum Grade

31°

Vertical Obstacles

0.30m

Roadwheels

Front: 1 per side
Rear: 1 bogie of 4 dual wheels per side

Roadwheel Materials

Front: 12ply rubber
Rear: steel with rubber tires

Return Rollers

Rear: 1 dual per side

Drive Sprocket

Front, 18-tooth

Idler Sprocket

Rear, spring loaded

Track Type

Endless band

Pitch

1,01.6mm, 58 per track

Track Ground Contact

1.188m

Track Width

304.8mm

The Carrier, Personnel, Half-Track, M5, is an American halftrack developed during the Second World War.

The vehicle was developed from the M3 Half-Track, and was classified as Substitute Standard. Most were allocated to international aid under the Lend-Lease program, but a number were retained for training purposes.

Variants[]

Carrier, Personnel, Half-Track, M5: Standard model.
Carrier, Personnel, Half-Track, M5A1: Updated model.

Derivatives

Carriage, Motor, Multiple Gun, M14: Anti-aircraft model with two 12.7mm machine guns in M33 mount.
Carriage, Motor, Multiple Gun, M17: Anti-aircraft model with four 12.7mm machine guns in M45D mount.
