Overview[]

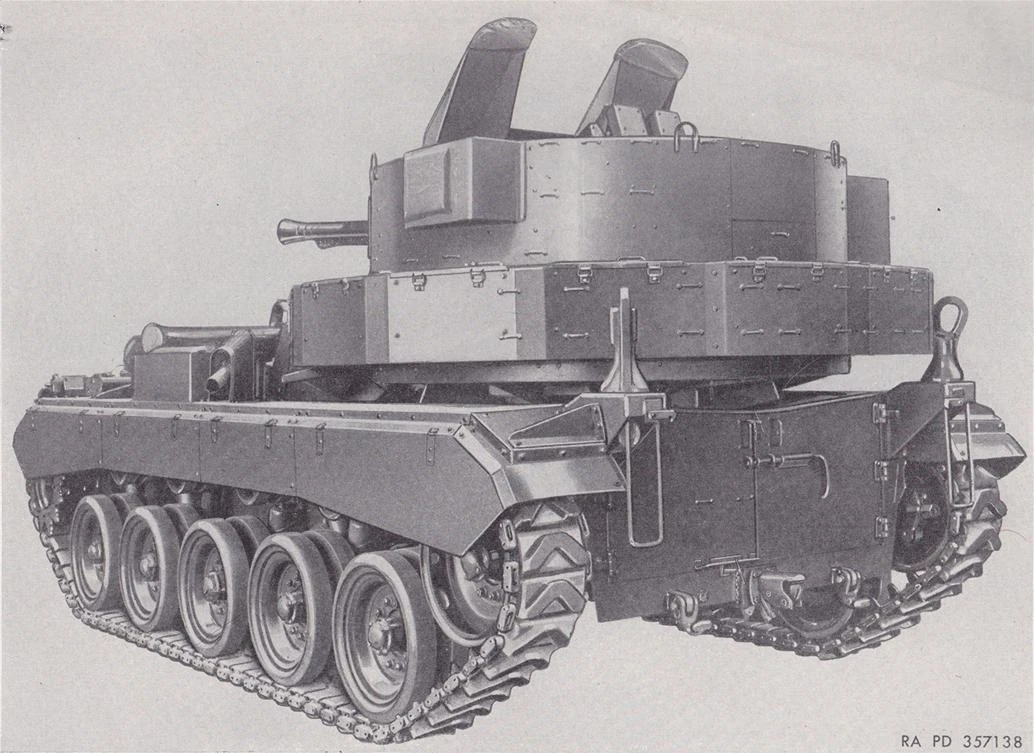

The Carriage, Motor, Twin 40mm Gun, M19A1 is an American self-propelled anti-aircraft vehicle developed in the 1940s from the M19. The M19A1 is based on a lengthened M24 light tank chassis.
Naming[]
| Name | Issuer | Date | Note |
|---|---|---|---|
| Carriage, Motor, Twin 40mm Gun, M19A1 | TM 9-761 | 3 March 1953 | |
| Copperhead | 4 June 1945 | In a letter to U.K. forces detailing nomenclature in use (for M19). |
Development[]
An auxiliary generator was installed on the right fender behind the battery box. The exhausts were changed to have the two exhaust pipes on the left-side of the vehicle. New radios installed in the turret required overhanging extensions.
Variants[]
|
