Overview[]

The Carriage, Motor, Multiple Gun, M16A1 (Abbreviated as M16A1 MGMC) is an American self-propelled anti-aircraft halftrack developed from the M16 MGMC.

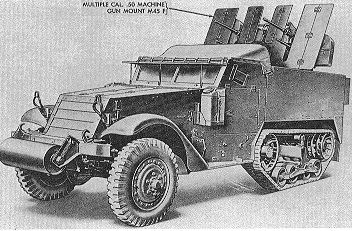

The M16A1 is identical to the M16, except in that it uses the M45F mount for the armament instead of the M45D. This new mount is fitted with a larger armoured shield.

Variants[]

Carriage, Motor, Multiple Gun, T58
Prototype model on M3 Half-Track.
Carriage, Motor, Multiple Gun, T61
Prototype model on M2 Half-Track.
Carriage, Motor, Multiple Gun, M13
Model with M33 mount.
Carriage, Motor, Multiple Gun, M16
Model with M45D mount.
Carriage, Motor, Multiple Gun, M16B
M45D mount on an M2 Half-Track instead of the M3 Half-Track.
Carriage, Motor, Multiple Gun, M16A1
Model with M45F mount. Additional communications equipment was also fitted.
Carriage, Motor, Multiple Gun, M16A2
Model with M45F mount. M16 converted to M16A1 standard, lacks some features.
M16A1 MGMC and M16 MGMC

M16A1 (left) next to M16 (right)
