Carriage, Motor, 8-inch Gun, T93

Overview[]

Carriage, Motor, 8-inch Gun, T93

General Data

Type

Self-Propelled Gun

Place of Origin

United States of America

Designed

1945

Produced

1945

Number Built

At least 2

Development

Chassis

Tank, Medium, T26E3 / T92 GMC

Armament

Main Gun

8-inch M1

Defence

Armour Layout

Up to 25mm

Misc Specs

Crew

8 (Commander, Driver, Co-Driver, Loader, Loader, Loader, Loader, Loader)

Dimensions

Weight

58t

Length

9.8m

Width

3.4m

Height

3.2m

Automotive

Engine

Ford GAF

Power/Weight

8.1hp/t

Engine Characteristics

8-cyl, 470hp

Fuel Capacity

Unknown amount of gasoline/petrol

Operational Range

80 - 129km

Speed

24km/h

Suspension

Torsion bar

Roadwheels

7 dual

Return Rollers

6 dual

Drive Sprocket

Front

Idler Sprocket

Rear

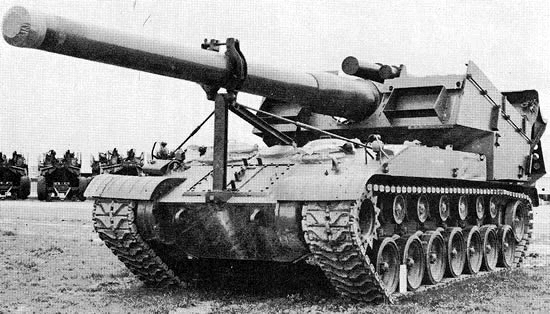

The 8-inch Gun Motor Carriage, T93 is a prototype self-propelled gun developed in 1945. The T93 is identical to the T92 save the main gun. The T93/92 are based on the Tank, Medium, T26E3 with an extended chassis, adding an extra road wheel and moving the drive sprocket to the front.
