Carbine, Caliber 5.56mm, XM177E1

Overview

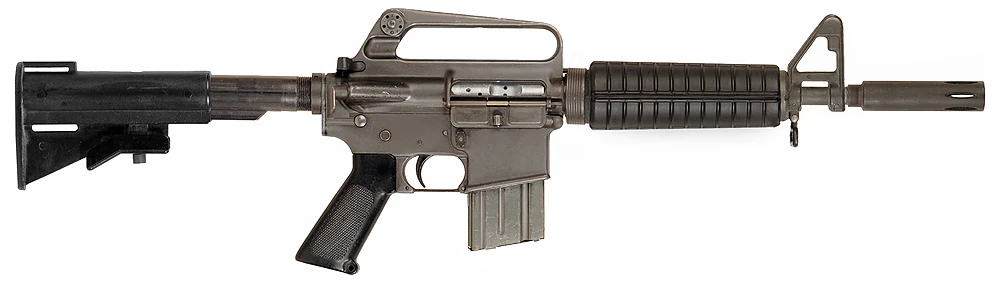

XM177E1 Assault Rifle
General Information
Type	Assault Carbine
Place of Origin	United States of America
Designer Companies	Colt
Period Designed	1966
Manufacturer	Colt
Period Produced	1966-1969
Developed From	XM177 Assault Rifle
Developed Into	XM177E2 Assault Rifle
Characteristics
Cartridge	5.56x45mm
RoF, Cyclic	700rpm
Action	Gas-operated, rotating bolt
Firemodes	Full, semi, safe
Feed System	Detachable box magazine
Ammunition Loading	5.56x45mm STANAG magazines: • USGI M16 Mag.: 20-rnd • USGI M16 Mag.: 30-rnd • (More)
Effective Range	400m
Dimensions
Weight	~2.4kg
Barrel Length	250mm
Components
Upper Receiver	A1
Lower Receiver	Partial fence (early models) Full fence (late models)
Muzzle Device	4.25" moderator
Handguard	Ribbed
Stock
Stock Type	Collapsible, 2nd gen
Sights
Sights	Fixed, iron sights carry handle

The XM177E1 Assault Rifle (Colt 609) is an American assault rifle developed from the M16 Assault Rifle.

Variants

XM177 — Colt 610 US Army classification of the CAR-15 SMG with bolt closure device, adopted by the USAF as SMG GAU-5/A XM177E1 — Colt 609 US Army classification of the CAR-15 SMG with slickside upper, adopted by the USAF as SMG GAU-5/A XM177E2 — Colt 629 XM177 with slightly longer barrel and improved muzzle device, with a variant without a bolt closure device adopted by the USAF as GAU-5/A/A Colt Model 639 XM177E2 designed for export GUU-5/P USAF modified GAU-5 weapons
