Armored Utility Vehicle, T16

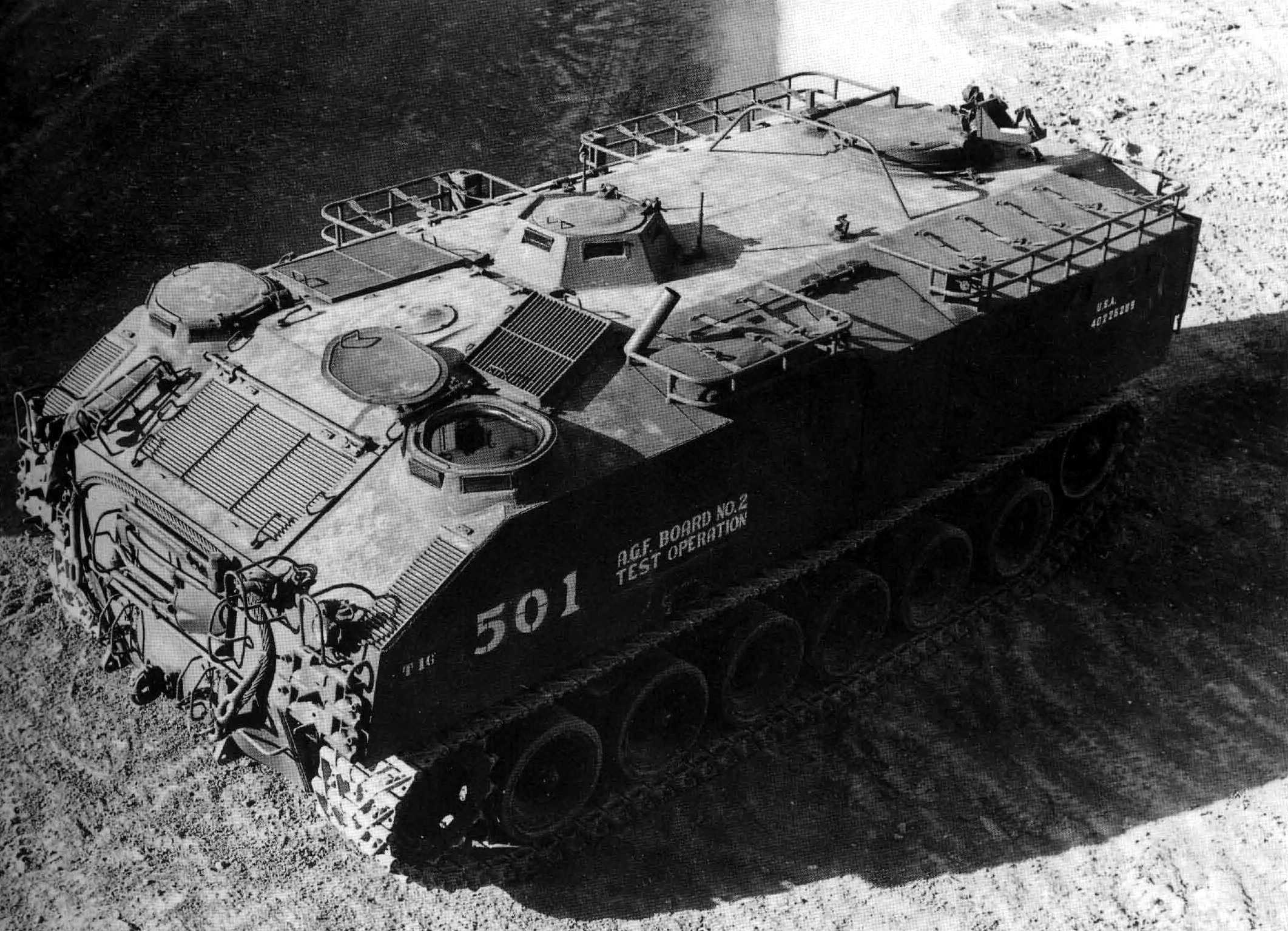

Image 1
Image 2
Image 3

General Data

Type

APC

Place of Origin

United States of America

Designed

~1945

Armament

Hull Mounted Gun

.30-06 Springfield M1919A4 MG (1,000-rnds)

Pintle / AA Gun

12.7x99mm M2 MG (550-rnds)

Crew Weaponry

2 x .45 ACP M3 SMG (420-rnds) or .30 Carbine M1 Carbine (480-rnds)
25 x .30-06 Springfield M1 Rifle (1,000-rnds)
1 x M9 Rocket Launcher (10-rnds)
4 x smoke grenades
12 x hand grenades

Misc Specs

Crew

3 (Driver, Commander, Bow-Gunner)

Loading Capacity

24 infantry

Vehicle Optics

14 x Periscope, T24
10 x Pistol ports

External Communication

Any of the following;
• AN/VRC-3 • AN/URC-1 • RC-99 • SCR-506 • SCR-508 • SCR-510

Dimensions

Weight

23.133t (combat load)
18.597t (unstowed)

Length

6.51m

Width

3.038m

Height

2.54m

Tread

2.438m

Automotive

Engine

Continental R975 D4
R-9, 4-Stroke, Air-Cooled 24,714 cm³ liter, Gasoline (80 Octane) 466.6HP @ 2,400 RPM

Transmission/Gearbox

Torqmatic
Detroit Transmission 900AD

Brakes

Mechanical, external contracting

Ground Clearance

0.465m

Fuel Capacity

946.4 liters (80 Octane)

Operational Range

~289.7km

Speed

51.5km/h (on-road)

Maximum Fording Depth

1.016m

Minimum Turning Diameter

13.411m

Suspension

Torsion bar

Roadwheels

6

Return Rollers

4

Drive Sprocket

Front

Idler Sprocket

Rear

Track Type

Single pin, cast-steel chevrons

Track Ground Contact

3,787.14mm

Links

83

Track Width

533.4mm

The Armored Utility Vehicle, T16, is an American prototype armoured personnel carrier developed in the mid 1940s.

Development[]

Following the cancellation of the T13 and T33 project via OCM 27033 on 22 March 1945, OCM 27227 on 5 April 1945 was undertaken. OCM 27227 approved the development of a new armoured personnel carrier capable of auxiliary roles, just like the T13, but this time authorized the use of the drive train from the M18 GMC.

The Armored Utility Vehicle, T16 was to also serve as the basis for a mortar carrier, fitting a 4.2-inch mortar, the T35. The T35 would later be superseded by the T38 carrier.

On 12 April 1945, OCM 27295 authorized limited procurement of the T16, with Cadillac receiving the contract to deliver six vehicles for June 1945. These vehicles were constructed, and underwent trials at the Aberdeen Proving Ground and Fort Knox. The designation changed to Armored Utility Vehicle, M44, but the vehicle was considered too large to accommodate the current doctrine, where 27 men was too many to be transported in one vehicle.

On 31 October 1946, OCM 31172 authorized the modification of one of the pilot M44 vehicles to incorporate various improvements, designated M44E1.
