Overview[]

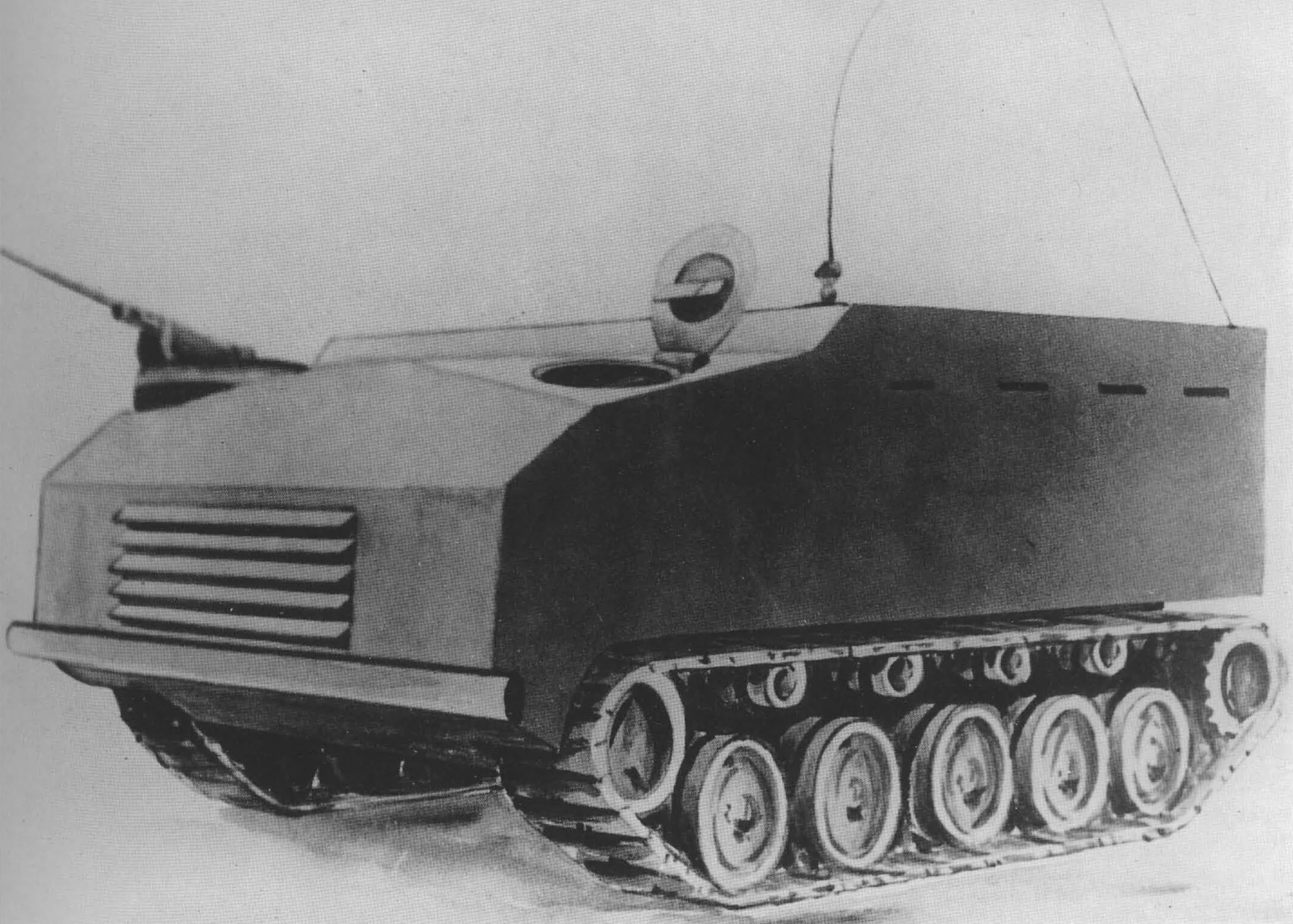

The Armored Utility Vehicle, T73, is an American armoured personnel carrier project initiated in the mid 1940s.
Development[]
In late 1944, a proposal to replace the half-track transports, which suffered from poor mobility, was undertaken. On 9 November 1944, approval of development of a vehicle under OCM 25696 was filed, specifying the Armored Utility Vehicle, T13. This new vehicle was to use a fully-tracked chassis, and be capable of performing auxiliary roles including reconnaissance, cargo carrying, and as a prime mover.
An unarmoured cargo carrying version of the T13 was also proposed, designated T33. The T33 was to use the same engine as the T13, but proved inadequate and the T33, along with the T13, was cancelled via OCM 27033 on 22 March 1945.
OCM 27227 dated 5 April 1945, approved for the T16, using the M18 power train.
