Not to be confused with the 12,8cm PaK 40.
Overview[]

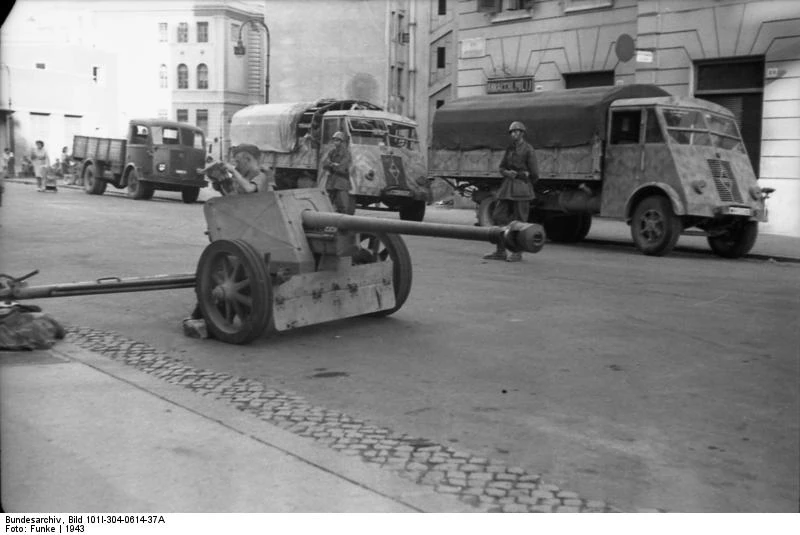

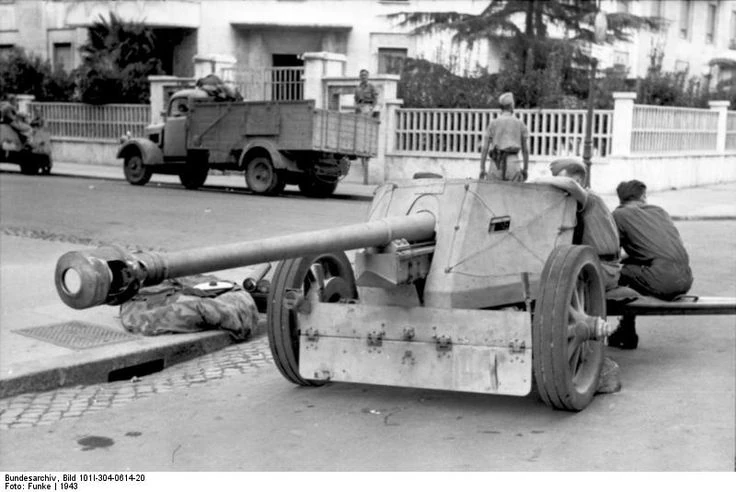

The 7,5cm Panzerabwehrkanone 40 (7,5cm PaK 40) is a German anti-tank gun. The development of the 7,5cm PaK 40 began after Soviet tank designs were reported in 1939. The 5cm PaK 38 was still in testing at this point, but it appeared it would not powerful enough to deal with the newer designs. Contracts were placed with Krupp and Rheinmetall to develop a 75mm version of the PaK 38. The PaK 40 is the version put forth by Rheinmetall, and the PaK 41 is the version from Krupp.
Variants[]
- 7,5cm PaK 40 L/46
- Standard model.
- 7,5cm PaK 40 L/60
- Model with a barrel length of 60 calibers.
- 7,5cm PaK 40/1
- 7,5cm PaK 40/2
- 7,5cm PaK 40/3
- 7,5cm KwK 40 L/43 or L/48
- The 7,5cm Kampfwagenkanone 40 is a version that is designed to be mounted on vehicles inside turrets. It used 75x495mmR ammunition instead of 75x714mmR which allowed for more ammunition to be stored in vehicles.
- 7,5cm StuK 40
- The 7,5cm Sturmkanone 40 is a variant that is designed to be used in Sturmpanzers.
- BK 7,5
- The Bordkanone 7,5 is a 7,5cm aircraft cannon.
Vehicle Mounts[]
The 7,5cm PaK 40 was mounted on vehicles as well as towed. The following is a list of those vehicles.
- 7,5cm PaK 40/1 (Sf) auf Geschützwagen 39H(f)
- 7,5cm PaK 40/1 (Sf) auf Geschützwagen FCM-36(f)
- 7,5cm PaK 40/1 (Sf) auf Geschützwagen LrS(f)
- 7,5cm PaK 40/2 (Sf) auf Fahrgestell Panzerkampfwagen II
- 7,5cm PaK 40/3 (Sf) auf Panzerkampfwagen 38(t) Ausf. H
- Panzerjäger 38(t) mit 7,5cm PaK 40/3 Ausf. M
- Schwerer Panzerspähwagen (7,5cm PaK 40)
Ammunition[]
Panzergranate 38 HL/B (PzGr 38 HL/B) is a HEAT (High-explosive, anti-tank) projectile with a shaped charge.
- Projectile weight: 4.57kg
- Muzzle velocity: 450m/s
- Penetration @ 100m/30°: 75mm
- Penetration @ 500m/30°: 75mm
- Penetration @ 1000m/30°: 75mm
- Penetration @ 1500m/30°: 75mm
Panzergranate 39 (PzGr 39) is an APCBC (Armour-piercing, capped, ballistic cap) projectile with explosive filler and tracer.
- Projectile weight: 6.80kg
- Muzzle velocity: 770 - 790m/s
- Penetration @ 100m/30°: 108mm
- Penetration @ 500m/30°: 96mm
- Penetration @ 1000m/30°: 80mm
- Penetration @ 1500m/30°: 64mm
Panzergranate 40 (PzGr 40) is an APCR (Armour-piercing composite rigid) projectile with a sub-calibre tungsten core.
- Projectile weight: 4.05kg
- Muzzle velocity: 990m/s
- Penetration @ 100m/30°: 143mm
- Penetration @ 500m/30°: 120mm
- Penetration @ 1000m/30°: 97mm
- Penetration @ 1500m/30°: 77mm
Sprenggranate 34 (Sprgr 34) is a HE (High-explosive) projectile.
- Projectile weight: 5.74kg
- Muzzle velocity: 550m/s
